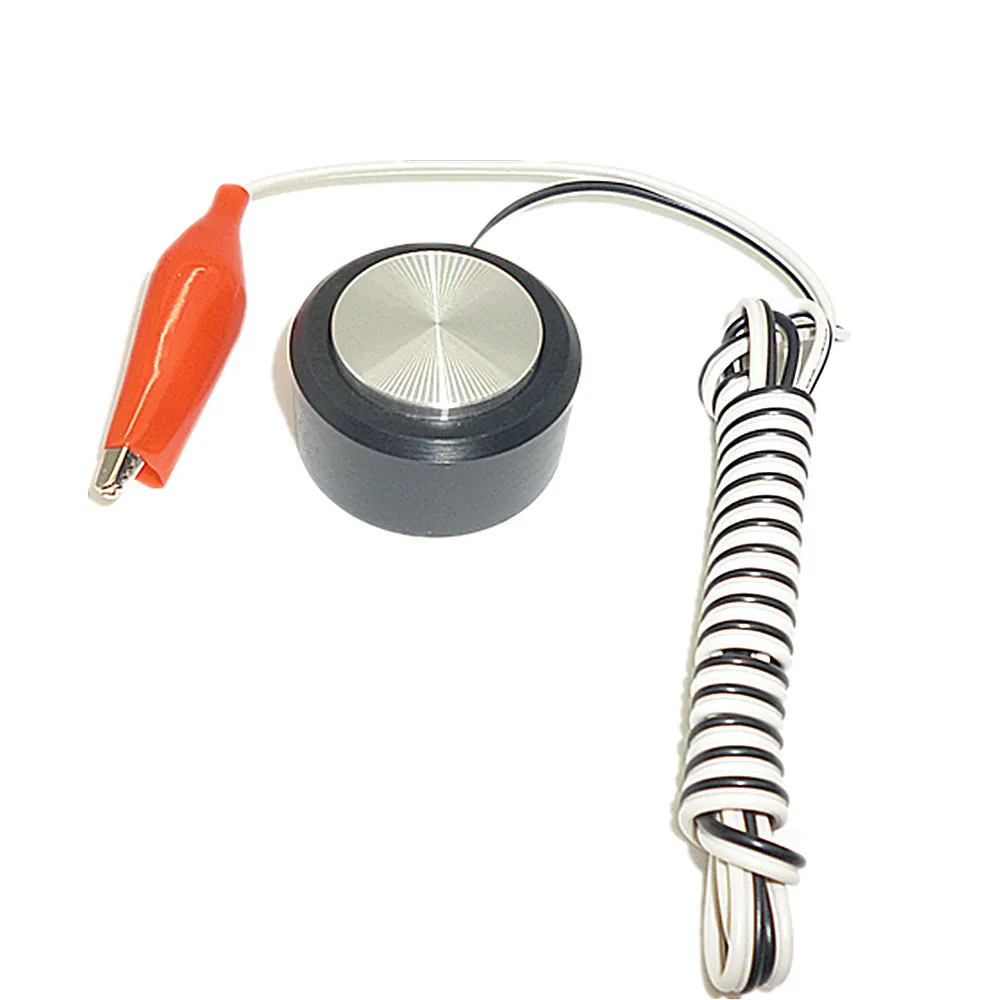

The less convenient bit to get around the differences in the two devices, is to go into "ports and pins" and set "active low" when using the plate and "active high" when using the probe.Īs with most things there is more than one way to skin a cat. Plug in to that, either the touch plate or the touch probe.
So what I did and what I think is the simplest way to do it, is to have your already installed touch plate connection via a 3.5mm socket at the control box. Touching the tool or "closing the switch". ( CNC Router Parts is now Avid CNC ) We offer professional machine tools that are designed to provide everyone with access to CNC technology, with three distinct lines of ready-to-assemble CNC Router and Plasma machine kits, along with step-by-step instructional materials and support. The way we make the touch plate as simple as it is, is to have the input high so we can change it's state by bringing it low or grounding it. Depending on whether it is set to "active high" or "active low" So it is looking for the input pin to change state.
Mach is looking for an input from "Probe" or also referred to as "Digitize". As far as Mach is concerned both the Touch Probe and the Touch Plate are the same thing.
